PhotonTek Control Link Cable 5m

Product image 1
1 / 2

PhotonTek Control Link Cable 5m

Description

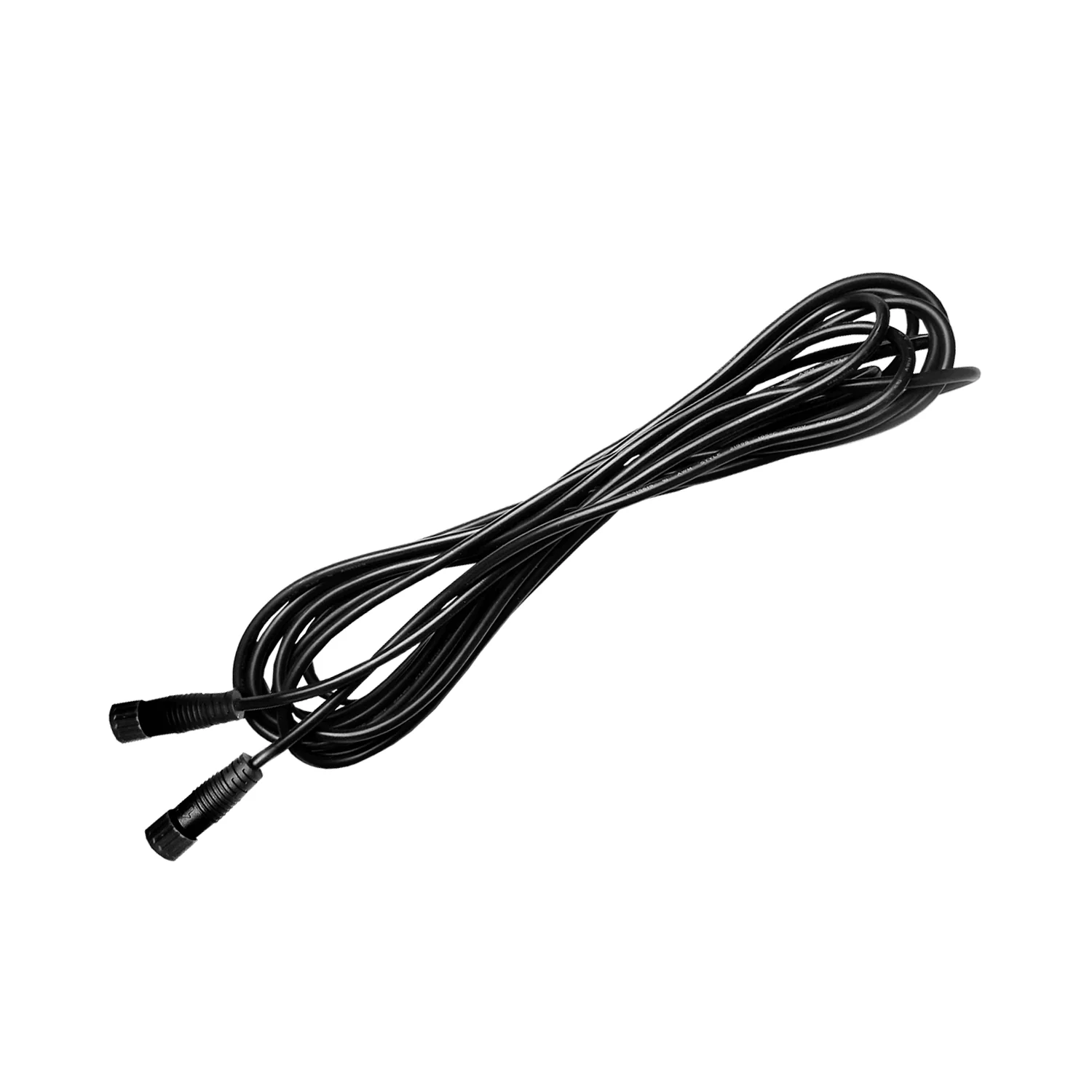

  • Control Link Cable: This cable, having a length of 16.4 feet, is tailored to daisy-chain your Photontek Controllable LED Fixtures, ensuring a stable and precise connection devoid of interference. You simply have to plug the M12 Self-locking male plug into the Signal Out LED structure output and the M12 Self-locking female plug into the Signal In LED structure input of the next fixture.

  • Wire Specifications: The wire gauge is UL 2464 3×22AWG, able to withstand temperatures of 176°F and a voltage of 300V VW-1. Please note the product code for this item: PTEKM0018.

  • Technical/Test Data: This cable can withstand a voltage between conductor and insulator of 800 VAC, 2mA, with a test time of 60S. During this test period, no breakdown or leakage current is expected to occur. It is resistant to temperatures of 176°F. The working temperature range is from -4°F to 221°F and it can be stored in temperatures ranging from -13°F to 221°F. It complies with RoHS and is classified as IP65.
    • Specifications
  • Product Code: PTEKM0018
  • Wire Gauge: UL 2464 3×22AWG 80°F 300V VW-1

  • Technical/Test data
  • Withstand voltage between conductor and insulator is: 800 VAC, 2mA, test time 60 seconds, without breakdown or leakage current
  • Temperature Resistance: 80°F
  • Working temperature: -4°F to 221°F
  • Storage temperature: -13°F to 221°F
  • IP65
  • Complies with RoHS
    • $74.99
    PhotonTek Control Link Cable 5m—
    $74.99

    Product Information

    Shipping & Returns

    Description

    Description
  • Control Link Cable: This cable, having a length of 16.4 feet, is tailored to daisy-chain your Photontek Controllable LED Fixtures, ensuring a stable and precise connection devoid of interference. You simply have to plug the M12 Self-locking male plug into the Signal Out LED structure output and the M12 Self-locking female plug into the Signal In LED structure input of the next fixture.

  • Wire Specifications: The wire gauge is UL 2464 3×22AWG, able to withstand temperatures of 176°F and a voltage of 300V VW-1. Please note the product code for this item: PTEKM0018.

  • Technical/Test Data: This cable can withstand a voltage between conductor and insulator of 800 VAC, 2mA, with a test time of 60S. During this test period, no breakdown or leakage current is expected to occur. It is resistant to temperatures of 176°F. The working temperature range is from -4°F to 221°F and it can be stored in temperatures ranging from -13°F to 221°F. It complies with RoHS and is classified as IP65.
    • Specifications
  • Product Code: PTEKM0018
  • Wire Gauge: UL 2464 3×22AWG 80°F 300V VW-1

  • Technical/Test data
  • Withstand voltage between conductor and insulator is: 800 VAC, 2mA, test time 60 seconds, without breakdown or leakage current
  • Temperature Resistance: 80°F
  • Working temperature: -4°F to 221°F
  • Storage temperature: -13°F to 221°F
  • IP65
  • Complies with RoHS
