Description

Direct nutrient distribution: The V-SYSTEM provides direct distribution of nutrients to plants.

Maximum oxygen saturation: The system ensures maximum oxygen saturation for the plants.

No air pump needed: There's no need for an additional air pump with this system.

No heat transferred: The V-SYSTEM doesn't transfer any heat, ensuring a stable environment for your plants.

Vortex fluid motion: With its unique design, the system creates a vortex motion for fluid.

Key V-SYSTEM Features:

15 gallon (58L) V-POT: This system comes with a 15-gallon pot for optimal plant growth.

Water fill line: For easy water filling, a fill line is included.

Total-drainage bases: The bases of this system have been designed for total drainage.

Venturi injectors: V-SYSTEM features Venturi injectors for efficient operation.

5" spiral tubing: The system includes a 5" spiral tubing for assembly.

Integrated filtration: The V-SYSTEM is fitted with integrated filters for clean operation.

T304 Stainless clamps: The set comes with durable T304 stainless clamps.

Heavy-duty components: All components of the V-SYSTEM are heavy-duty and designed to last.

Push-fit feed connections: Feed connections in the system are push-fit for easy assembly and efficient flow.

JET-STREAM® Vortex™ pump: The system comes with a powerful JET-STREAM® Vortex™ pump to ensure efficient nutrient and water distribution.

Specifications

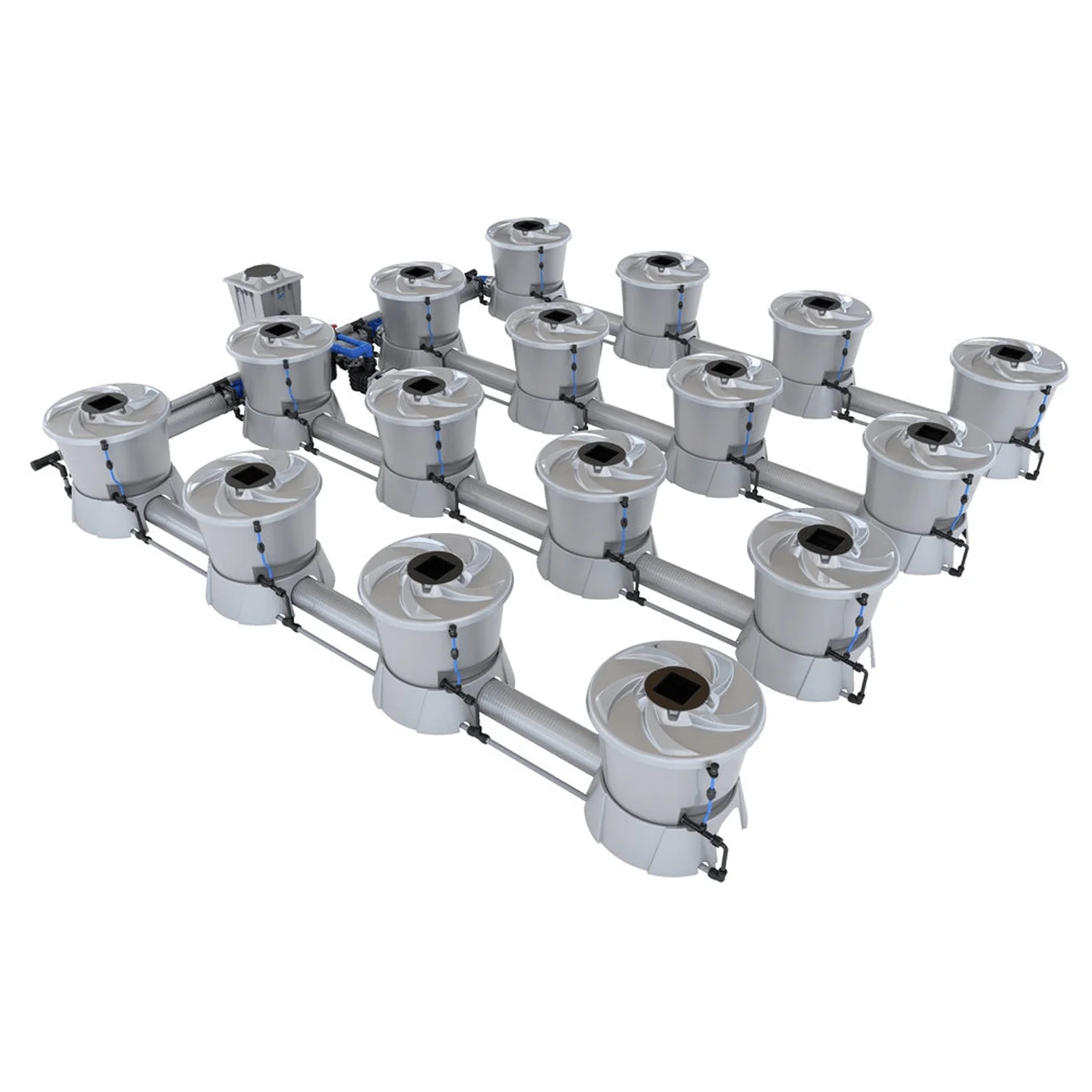

Product Name: V-SYSTEM 16 Pot 4 Row Kit

Technical Information

Number of pots: 16

Number of rows: 4

Kit total fluid volume: 261.5 gallons (990 L)

Minimum assembled size (can space pots more widely for a larger footprint):

Length: 8' 3.6" (99.6 inches / 2530 mm)

Width: 7' 7.3" (91.3 inches / 2320 mm)

Water Pump Included with the Kit:

Model: V-SYSTEM Vortex Water Pump 550W 120V 13800 l/h

Wattage: 550 watts

Flow Rate: 3646 gal/hr (13800 L/hr)

Recommended water chiller minimum capacity: 396 gallons (1500 L)

Data Sheet

Download the instruction manual: here

Download the technical drawing: here

Kit Contents

The V-SYSTEM 16 Pot 4 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 550W 120V 13800 l/h

16 x V-Pot 58L

16 x V-Pot Base

16 x V-Pot Lid

16 x V-Pot Lid Inspection Cover

16 x Square Net Pot

16 x V-Pot Clip

16 x Air Filter for V-SYSTEM Venturi, 6mm

16 x Silencer for Venturi

16 x Venturi Fitting

16 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

16 x Venturi Inlet Fitting for 22mm Pipe

17 x Nut 5"

17 x Washer 5" Green Silicone

42 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

4 x DM Push-Fit Elbow 22-15mm V-SYSTEM

4 x DM Push-Fit Elbow 22mm V-SYSTEM

12 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

5 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

16 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

5 x Pipe 40mm Silver 1 Meter Spiral

18 x Pipe 5" Silver Spiral 80cm

3 x Tee 5" Barbed

12 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Short

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

2 x Terminal Manifold Center 40mm

1 x Terminal Manifold Right 40mm

40 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

12 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

4 x Silicone Grease - Food Grade
