AC Infinity AXIAL LS1238, Muffin 120V AC Cooling Fan, 120mm x 120mm x 38mm, Low Speed
1 / 9
AC Infinity AXIAL LS1238, Muffin 120V AC Cooling Fan, 120mm x 120mm x 38mm, Low Speed
Description

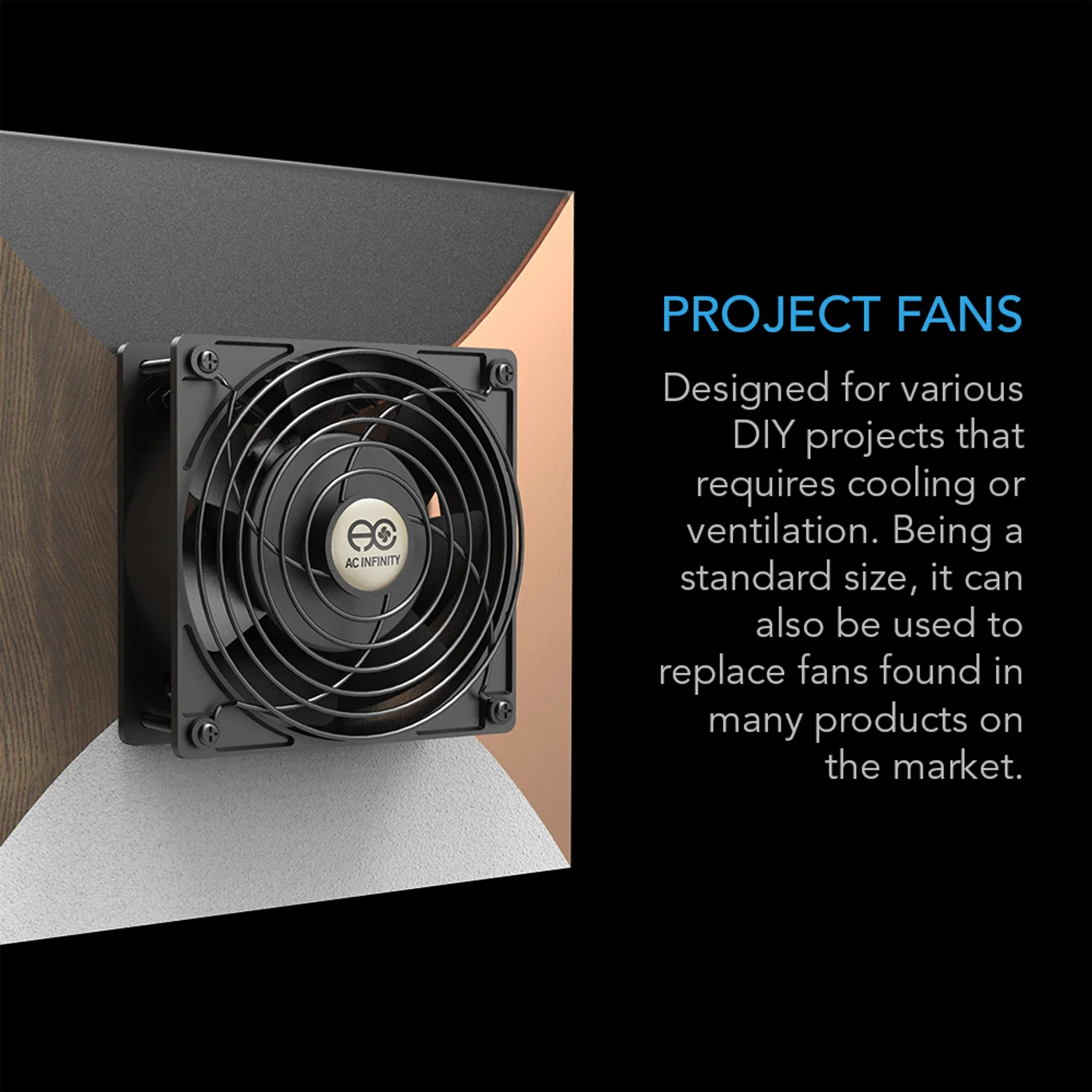

Designed for projects that require cooling or ventilation, or as a replacement fan for various products.
Includes a heavy-duty aluminum fan with a power plug cord, two fan guards, and a mounting screw set.
UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.
Low Speed: This model has a lower noise and airflow rating compared to high-speed models of the same size.
Size: 120 x 120 x 38 mm (4.7 x 4.7 x 1.5 in.)
Voltage: 100 to 120V AC
Airflow: 62 CFM
Noise: 32 dBA
Speed: 1800 RPM
The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. It runs on 100 to 120V AC and includes everything needed to easily mount and power the fan through a wall outlet.
It comes with a 4-foot power cord that can be easily attached to the fan's metal terminals for wall outlet power. The plug cord can also be cut and converted into lead wires to connect to a wired AC power source.
The kit also includes two 120 millimeter metal fan guards and a mounting screw set.
The AC Infinity axial fan is UL recognized under certificate E503903 and is also CE and RoHS certified.
The fan's housing is constructed of die-cast aluminum painted black, making it suitable for harsh environments and able to withstand shocks.
Its impeller and blades are molded with thermoplastic, which has high flammability resistance.
Impedance-protected motors contain windings that have a higher resistance to heat during a rotor lock.
Containing long-life dual ball bearings, the fans can run continuously for 67,000 hours and be mounted in any direction.
This low-speed fan is suitable for applications that require a lower noise level and can accept a weaker airflow.
Popular uses include theater cabinets, wood stove heaters, room-to-room doorways, amplifiers, kegerators, and more.
Because this is a standard industrial size fan, it can be used to replace fans found in various electronics and machinery.
Specifications
Product Identification
Manufacturer: AC Infinity Inc.
Product Name: AXIAL LS1238
Product Model: LS1238A-X
UPC Code: 819137020542
Product Dimensions
Total Dimensions: 4.7 x 4.7 x 1.5 in. (12.0 x 12.0 x 3.8 cm)
Hole to Hole Distance: 4.13 x 4.13 in. (10.5 x 10.5 cm)
AC Infinity AXIAL LS1238, Muffin 120V AC Cooling Fan, 120mm x 120mm x 38mm, Low Speed—
$29.99
$9.00
Product Information
Shipping & Returns
Description
Description
Designed for projects that require cooling or ventilation, or as a replacement fan for various products.
Includes a heavy-duty aluminum fan with a power plug cord, two fan guards, and a mounting screw set.
UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.
Low Speed: This model has a lower noise and airflow rating compared to high-speed models of the same size.
Size: 120 x 120 x 38 mm (4.7 x 4.7 x 1.5 in.)
Voltage: 100 to 120V AC
Airflow: 62 CFM
Noise: 32 dBA
Speed: 1800 RPM
The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. It runs on 100 to 120V AC and includes everything needed to easily mount and power the fan through a wall outlet.
It comes with a 4-foot power cord that can be easily attached to the fan's metal terminals for wall outlet power. The plug cord can also be cut and converted into lead wires to connect to a wired AC power source.
The kit also includes two 120 millimeter metal fan guards and a mounting screw set.
The AC Infinity axial fan is UL recognized under certificate E503903 and is also CE and RoHS certified.
The fan's housing is constructed of die-cast aluminum painted black, making it suitable for harsh environments and able to withstand shocks.
Its impeller and blades are molded with thermoplastic, which has high flammability resistance.
Impedance-protected motors contain windings that have a higher resistance to heat during a rotor lock.
Containing long-life dual ball bearings, the fans can run continuously for 67,000 hours and be mounted in any direction.
This low-speed fan is suitable for applications that require a lower noise level and can accept a weaker airflow.
Popular uses include theater cabinets, wood stove heaters, room-to-room doorways, amplifiers, kegerators, and more.
Because this is a standard industrial size fan, it can be used to replace fans found in various electronics and machinery.
Specifications
Product Identification
Manufacturer: AC Infinity Inc.
Product Name: AXIAL LS1238
Product Model: LS1238A-X
UPC Code: 819137020542
Product Dimensions
Total Dimensions: 4.7 x 4.7 x 1.5 in. (12.0 x 12.0 x 3.8 cm)
Hole to Hole Distance: 4.13 x 4.13 in. (10.5 x 10.5 cm)
