AC Infinity AXIAL 9225, Muffin 120V AC Cooling Fan, 92mm x 92mm x 25mm
1 / 9
AC Infinity AXIAL 9225, Muffin 120V AC Cooling Fan, 92mm x 92mm x 25mm
Description
Designed for projects that require cooling or ventilation; or as a replacement fan for various products.
Includes a heavy-duty aluminum fan with a power plug cord, two fan guards, and a mounting screw set.
UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.
High Speed: This model is designed to maximize airflow and may be too loud for some applications.
92 x 92 x 25 mm (3.6 x 3.6 x 1.5 in.) | 100 to 120V AC | Airflow: 37 CFM | Noise: 37 dBA | Speed: 2900 RPM
The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. It includes a 4-foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and converted into lead wires to be connected to a wired AC power source. It also includes two 92 millimeter metal fan guards and a mounting screw set. The AC Infinity axial fan is UL recognized under certificate E503903 and is also CE and RoHS certified.

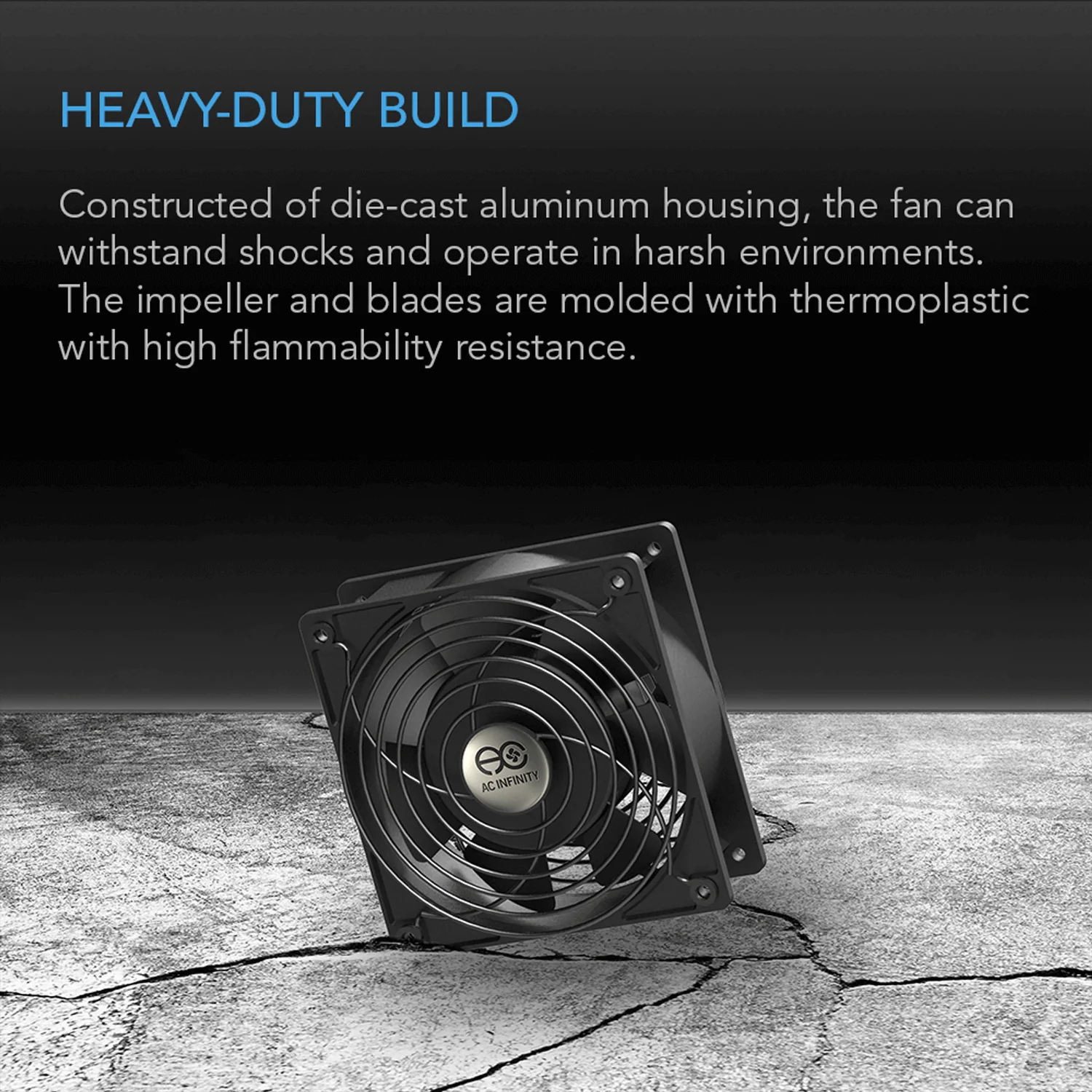

The fan's housing is constructed of die-cast aluminum painted black and is able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic, which have a high resistance to flammability. Impedance protected motors contain windings that have a higher resistance to heat during a rotor lock. The fans contain long-life dual ball bearings, allowing them to run continuously for 67,000 hours and be mounted in any direction.
This high-speed fan is suitable for applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Popular uses include casino machines, chicken coops, industrial machinery, arcade systems, and more. Because this is a standard industrial-size fan, it can be used to replace fans found in various electronics and machinery.
Specifications
Product Identification
Manufacturer: AC Infinity Inc.
Product Name: AXIAL 9225
Product Model: HS9225A-X
UPC Code: 854759004228
Product Dimensions
Total Dimensions: 3.6 x 3.6 x 1 in. (9.0 x 9.0 x 2.5 cm)
Hole to Hole Distance: 3.25 x 3.25 in. (8.3 x 8.3 cm)
AC Infinity AXIAL 9225, Muffin 120V AC Cooling Fan, 92mm x 92mm x 25mm—
$35.99
$10.80
Product Information
Shipping & Returns
Description
Description
Designed for projects that require cooling or ventilation; or as a replacement fan for various products.
Includes a heavy-duty aluminum fan with a power plug cord, two fan guards, and a mounting screw set.
UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.
High Speed: This model is designed to maximize airflow and may be too loud for some applications.
92 x 92 x 25 mm (3.6 x 3.6 x 1.5 in.) | 100 to 120V AC | Airflow: 37 CFM | Noise: 37 dBA | Speed: 2900 RPM
The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. It includes a 4-foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and converted into lead wires to be connected to a wired AC power source. It also includes two 92 millimeter metal fan guards and a mounting screw set. The AC Infinity axial fan is UL recognized under certificate E503903 and is also CE and RoHS certified.
The fan's housing is constructed of die-cast aluminum painted black and is able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic, which have a high resistance to flammability. Impedance protected motors contain windings that have a higher resistance to heat during a rotor lock. The fans contain long-life dual ball bearings, allowing them to run continuously for 67,000 hours and be mounted in any direction.
This high-speed fan is suitable for applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Popular uses include casino machines, chicken coops, industrial machinery, arcade systems, and more. Because this is a standard industrial-size fan, it can be used to replace fans found in various electronics and machinery.
Specifications
Product Identification
Manufacturer: AC Infinity Inc.
Product Name: AXIAL 9225
Product Model: HS9225A-X
UPC Code: 854759004228
Product Dimensions
Total Dimensions: 3.6 x 3.6 x 1 in. (9.0 x 9.0 x 2.5 cm)
Hole to Hole Distance: 3.25 x 3.25 in. (8.3 x 8.3 cm)
